7002PC-005

7002PC-005

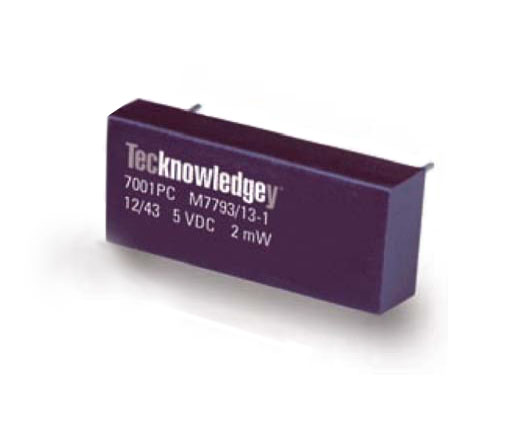

7002PC-005, Solid State Event Counter, PCB Mount, 5VDC

Call for Price

Model: 7002PC-005

Features

  • Designed Base Upon MIL-DTL-7793/13A
  • Solid State Event Count Indication
  • Voltage 5VDC
  • PCB Mount
  • Wide Operating Temp Range: -65 C to 125 C
  • Requires Military P/N: M7793/12-1 to be read (see Model 1170-007)

Tecknowledgey model 7002PC-005 is a Solid State Event Counter designed to meet MIL-DTL-7793 military specification (formerly MIL-M-7793) that records the number of times that power has been applied for at least 5 seconds up to 9,999,999 counts. Requires a military part number M7793/12-1 hand held reader to be read. See Tecknowledgey’s model 1170-007 hand held reader (sold separately).

Model: 7002PC-005

SKU: 7002PC-005

7001NT-115 (Military P/N: M7793/15-1)

7001NT-115

7001NT-115, Solid State Elapsed Time Indicator, Panel Mnt, 115VAC (Military P/N: M7793/15-1)

Digital Hour Meter PCB Mountable with Serial Output and No Display

201PC

Digital Hour Meter PCB Mountable with Serial Output and No Display

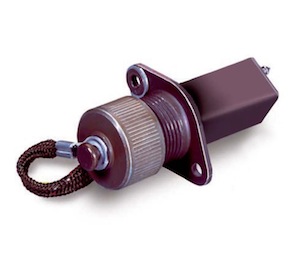

7002NT-115

7002NT-115

7002NT-115, Solid State Event Counter, Panel Mnt, 115VAC

6-digits, Cnt Speed: 10kHZ, no gears needed for measurement

PS2

6-digits, Cnt Speed: 10kHZ, no gears needed for measurement

Rotating-shaft Hour Meter/Tachometer, Battery Pwd, LCD Display

N160-0200

Rotating-shaft Hour Meter/Tachometer, Battery Pwd, LCD Display

6mm, 4-Digits or 6-Digits, 1.5V, Count Speed: 12Hz

MicroCnt III

6mm, 4-Digits or 6-Digits, 1.5V, Count Speed: 12Hz

7001PC-028 Elapse Time Indicator

7001PC-028

7001PC-028, Solid State Elapsed Time Indicator , PCB Mount, 28VDC/26VAC

7001PC (M7793/13-1)

7001PC-005

7001PC-005, Solid State Elapsed Time Indicator , PCB Mount 5VDC (Military P/N: M7793/13-1)

5mm Digits, Advisory LED Indicator, K or N Case Only

732

5mm Digits, Advisory LED Indicator, K or N Case Only

8-Digits, 9mm LCD Display, Speed: 10kHz, Self-powered

8905D

8-Digits, 9mm LCD Display, Speed: 10kHz, Self-powered
